MATICA
Entry level retransfer card printing
XID8100
Printing on PVC cards differs in many ways from printing on paper and therefore requires specific technology. The Matica XID8100 retransfer printer is the perfect solution for the regular day-to-day demand to personalize all kind of PVC cards.
Due to the retransfer printing technology, the XID8100 can print over-the-edge without any limitations to the PVC card design and graphic layout. The proven modular concept enables the PVC card printer to follow upgrade demands at any time. As a standard, the XID8100 is coming in a single side version, but various additional modules, such as flipper module, bend remedy module as well as a selection of encoders can be added on demand. A wide choice of in-line lamination modules to further protect the card against any physical impact or to make it even more secure, can be attached to the PVC card printer.
KEY STRENGTHS
- 300 x 300 dpi
- High reliability
- Up to 100 cards per hour
Technical Specifications
- Resolution :300 dpi
- Speed :100 cph
- Encoding :Contactless chip, Magnetic stripe
- Format & materials :ABS, ISO CR80, PC, PET, PVC
- Feeder :200-card feeder
- Connectivity :Ethernet, USB
- Printer dimensions (L x W x H) :343 x 322 x 360 mm
The flexible solution for high quality smart card personalization
XID8300
A compact, yet powerful PVC ID card printer is indispensable in day-to-day operations of many educational, financial or industrial facilities. Matica’s XID 8300 is a versatile PVC ID card printer, offering crystal-clear printing through retransfer technology and a high card-per-hour output.
Matica’s PVC ID card printer XID 8300 at a glance
- Over-the-edge retransfer printing for the sharpest colors
- Single or double-sided option to meet the demands of your organization
- High-volume output of up to 120 cards per hour for a speedy turnaround
- Compact size (343 x 322 x 360 mm) and modular design for scalability
- A range of security features to ensure optimal safety and fraud protection
KEY STRENGTHS
- 300 x 300 dpi
- Superior print quality and reliability
- Up to 120 cards per hour
Technical Specifications
- Resolution :300 dpi
- Speed :120 cph
- Encoding :Contactless chip, Magnetic stripe
- Format & materials :ABS, ISO CR80, PC, PET, PVC
- Feeder :200-card feeder
- Connectivity :Ethernet, USB
- Printer dimensions (L x W x H) :343 x 322 x 360 mm
600dpi ultra high resolution card printing
XID8600
This extremely high resolution is perfectly serving the increased security printing demands in ambitious ID card applications, such as national ID programs, drivers licenses and similar.
Since most of these projects are requiring the personalization on both sides of the card, the XID8600 already comes with a factory built-in flipper module in the standard model.
KEY STRENGTHS
- 600 x 600 dpi
- Duplex printing
- Micro-Text
- Up to 120 cards per hour
- Variable elements embedded in graphical items
- Very high print quality and reliability
Technical Specifications
- Resolution :600 dpi
- Speed :120 cph
- Encoding :Contactless chip, Magnetic stripe
- Format & materials :ABS, ISO CR80, PC, PET, PVC
- Feeder :200-card feeder
- Connectivity :Ethernet, USB
- Printer dimensions (L x W x H) :343 x 322 x 360 mm; 13.9 kg (excluding optional built-in items)
Innovative retransfer printer

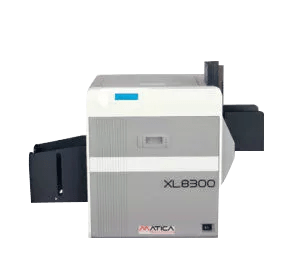

XL8300
Matica’s new XL8300 utilizes the trialed retransfer printing technology to offer superior quality event badge printing on non-standard, wide format cards. This model extends Matica’s broad portfolio to meet the rising demands of the event management industry.
Concert organizers, professional sports leagues or large marketing agencies can rely on XL8300 to express what their event stands for. Oversized cards may serve as event passes or tickets, as well as name tags to identify regular attendees, VIPs or staff. Lastly, they are able to facilitate security and access control.
KEY STRENGTHS
- 300 x 300 dpi, color printing
- Oversized card format: 124 x 85.6mm / 4.88’’ x 3.37’’
- Security: UV printing
- Superior print quality and reliability
- Up to 120 cards per hour
Technical Specifications
- Resolution :300 dpi
- Speed :128 cph
- Encoding :Contactless chip
- Format & materials :ABS, ISO CR80, PC, PET, PVC
- Feeder :100-card feeder
- Connectivity :Ethernet, USB
- Printer dimensions (L x W x H) :549 x 322 x 411 mm
Unique industrial card printer for high-volume card personalization
XID9330
It is the ideal solution for mass card production in multinational corporations, card service centers and government agencies.
The double-sided XID9330 retransfer card printer is the most powerful and versatile desktop unit in its class. The printer combines a maximum hourly output of printed cards with a wide range of encoding and highly secure lamination options. The printer provides the utmost in security due to physical locks and driver password.
KEY STRENGTHS
- 300 x 300 dpi
- 350 cards feeder capacity
- Clustering with EDI Secure Connect IPM
- Superior print quality and reliability
- Up to 120 cards per hour
Technical Specifications
- Resolution :300 dpi
- Speed :120 cph
- Encoding :Contactless chip , Magnetic stripe
- Format & materials :ABS, ISO CR80, PC, PET, PVC
- Feeder :300-card feeder
- Connectivity :Ethernet, USB
- Printer dimensions (L x W x H) :549 x 322 x 411 mm
Highest performance for personalizing smart and secure ID cards
XID9300
The XID9300 is perfect for use in highly secure, high volume operations such as government agencies, and R&D facilities, as well as multinational corporations.
For maximum flexibility in a professional environment, our innovative, double-side XID9300 Retransfer Card Printer comes preset for various encoding and lamination options. It offers high quality and highly durable print results with near offset print quality even on the challenging surfaces of smart cards.
KEY STRENGTHS
- 300 x 300 dpi
- Superior print quality and reliability
- Up to 120 cards per hour
Technical Specifications
- Resolution :300 dpi
- Speed :120 cph
- Encoding :Contactless chip , Magnetic stripe
- Format & materials :ABS, ISO CR80, PC, PET, PVC
- Feeder :300-card feeder
- Connectivity :Ethernet, USB
- Printer dimensions (L x W x H) :549 x 322 x 411 mm
